Silicone Free Release Film

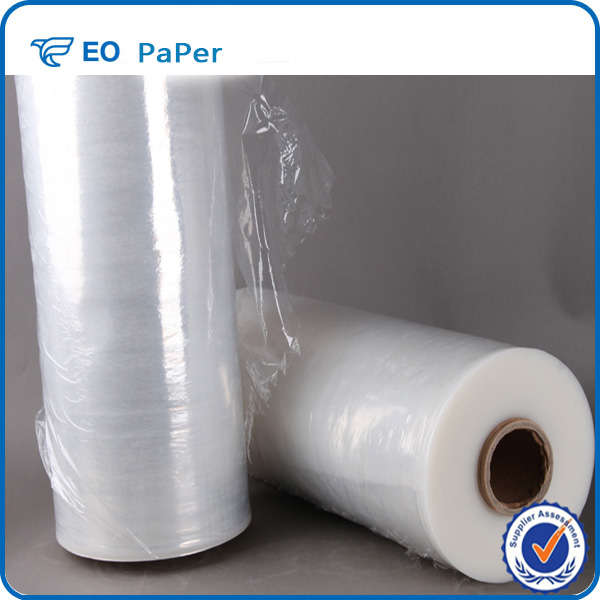

Product Name: Silicone free release Film
MOQ: 5 Tons
Trial Order: Available
Paper Type: Release paper
Payment Terms: L/C, T/T, PayPal, Western Union... Send Inquiry

Product Details


Silicone free release Film is a kind of different from ordinary silicon mold special mold of membrane, the surface coating layer is not commonly used siloxane composition, but will a does not contain fluoride silicon coated on PET film surface and the effect of mold.




Stripping force selection: 2g/in ~ 600g/in.

Product thickness selection: 12 m, 19 m, 23 m, 25 m, 30 m, 36 m, 50 m, 75 m, 100 m, 125 m, other thickness.


Product color selection: transparent (C), white (W), light blue (LB), dark blue (B), red (R), brown (Z), or your custom color.

Product width selection: 270mm, 510mm, other width (100mm ~ 2200mm)

Product length selection: 250m, 500m, 1000m, or any other non-standard length you want.


Product Description

Silicone free release Film is suitable for the manufacture of FPC/PCB/HDI/CCL laminate and laminated circuit board. The surface is coated with silicon without silicon, which eliminates the problem of residual contamination of silicone oil. The silicon free film is the high quality and environmentally friendly products that are provided to customers in order to meet this demanding process.




Silicone free release Film characteristics:

It has excellent physical and mechanical properties, small thickness tolerance, high heating temperature, low thermal shrinkage and good flexibility.


The products are commonly used in 25um, 38um and 50um thickness specifications. The membrane is odorless: it does not produce unpleasant odors and harmful gases to human health during laminating process; Dimensional stability: it will not deform, maintain the stability of the laminated plate, and reduce the wrinkling of copper foil in laminate.


Remain flexible: even if the temperature over 190 ℃, no silicon mold films remain flexible, not brittle. Ensure that the heat conduction and separable performance consistently; Safe and environmentally friendly: incineration or landfill disposal can be used without harmful gas.


Product Application

Silicone free release Film Application:

Unipeel can be used as a separator of adhesive tape, process film for substrates and capacitors including epoxy resin or polyimide, film for transfer foils, manufacturing process film for urethane rubber, silicone rubber, fluorine rubber, and other uses.




Certifications




Our Service


Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service


Packing & Shipping


Packing:

1. Packed with wooden case

2. Cardboard case

3. According to the requirements of customers


Shipment type:

1. Sea Freight

2. Air Cargo

3. Express delivery

4. Land Transportation




Hot Tags: silicone free release film, China, manufacturers, suppliers, factory, wholesale, cheap, buy, bulk, quotation, price
