Electrical Flexible Laminates Nmn insulation Paper

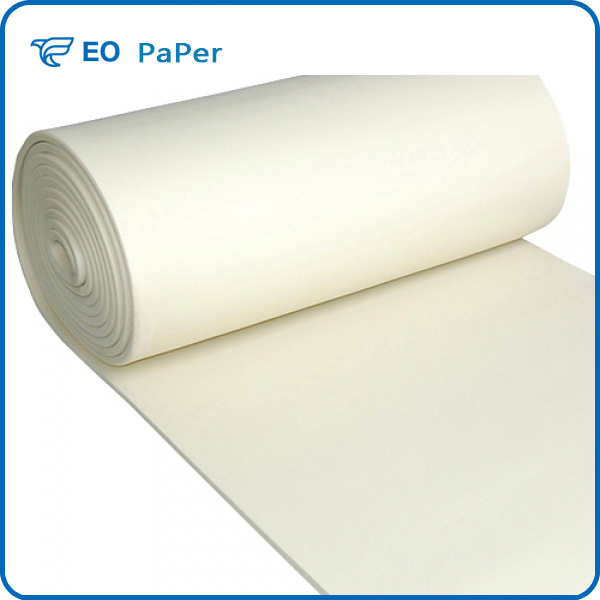

Product Name: Electrical Flexible Laminates Nmn Insulation Paper
MOQ: 5 Tons
Trial Order: Available
Paper Type: Release paper
Payment Terms: L/C, T/T, PayPal, Western Union...

Send Inquiry

Product Details

Product Detail

Item

name of index

Units

Values

1

Thickness

mm

0.15

0.18

0.2

0.25

0.3

0.35

2

Thickness Tolerance

mm

±0.020

±0.025

±0.030

±0.035

±0.040

±0.045

3

Tensile Strength

No bending MD

N/10mm

≥150

≥160

≥180

≥220

≥270

≥320

After bending MD

≥80

≥110

≥130

≥180

≥200

≥250

No bending TD

≥90

≥110

≥130

≥180

≥200

≥250

After bending TD

≥70

≥90

≥110

≥150

≥170

≥200

4

Elongation at break

MD

%

≥10

≥12

MD

≥15

≥18

5

Breakdown Voltage

KV

≥7

≥10

≥11

≥13

≥15

≥20

6

Normal BondingProperty

-

No delamination

7

180±2℃ 10min               Heat Bonding Property

-

No delamination,no leak




Product Description

Electrical Flexible Laminates Nmn Insulation Paper is composed of a layer of polyester thin film coated F both sides adhesive bonding of aromatic polyamide fiber paper and into the three layers of soft composite material, class F insulation materials,

The product has good dielectric properties, excellent mechanical strength, good flexibility, and has good intermiscibility with commonly used impregnating varnish, unique breakdown voltage and overload resistance, suitable for F, motor and generator slot insulation class H, also can be used as dry type transformer or other electrical layer insulation, etc.




Certifications


Our Service


Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service


Packing & Shipping

Packing:

1.Packed with wooden case

2. Cardboard case

3. According to the requirements of customers


Shipment type:

1. Sea Freight
 2. Air Cargo
 3. Express delivery
 4. Land Transportation
